See Further. Fly Smarter.

Redefine your FPV flight with high-performance imaging modules engineered for crystal-clear precision.

Contact Us

About Us

We are a specialized imaging solutions provider focused on FPV (First-Person View) camera modules. Our mission is to deliver top-tier optical modules designed to meet the needs of drone manufacturers, robotics engineers, and surveillance innovators. From pixel-perfect clarity to high sensitivity sensors, our modules are trusted by industry leaders worldwide.

Contact Us

Our Services

Comprehensive Drone Optical Solutions

Custom FPV Camera Module Development

OEM & ODM Service for Surveillance, Drone, and Industrial Applications

Technical Consultation & Integration Support

Lens Selection & Optical Tuning for Various FOVs (6mm to 75mm)

Why Choose Us

Wide Range of Focal Lengths

Dual Sensor Options

Custom Engineering

High Sensitivity Imaging

Plug & Play Integration

Our PRODUCTS

FPV Module Technical Datasheet

FPV-6mm

details

FPV-8mm

details

FPV-16mm

details

FPV-25mm

details

FPV-35mm

details

FPV-75mm

details

Get a Custom Quote Today

Contact us to discuss your FPV module needs — our expert team is ready to co-create the future of imaging with you.

Contact Us Now

Taiwan Optical Lens Manufacturer for Drones Professional Camera Design

Contact

Copyright © 2026 Ablegreat Co., Ltd. DBA Abeltech. All Rights Reserved.
返回頂端
ParameterTypical Value

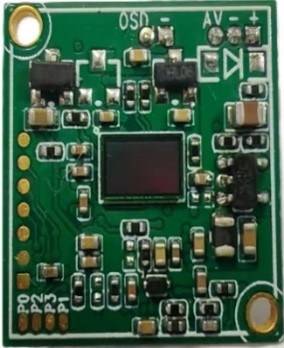

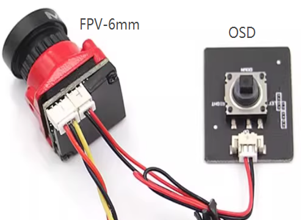

ModleFPV-6mm
Sensor1/3" 2M/1/2.8"5M CMOS sensor
Pixel size3.75um*3.75um/2.0um*2.0um
MCU3D Image Processing
SystemCVBS/NTSC 60fps
Low Lux0.01Lux(F1.2,AGC ON)
Color Filter Array/Day-Night modeAll RGB Bayer
Active Pixels1280H x 728V@60fps/FHD
Electric ShutterAuto 1/25-1/10000s
NoiseSupport 2D/3D noise reduction
Consumptionlow power consumption
ExposureAuto
Colour balanceAuto
Lens1.For 1/2.8'', 1/3''
2. Focal Length (f)=6.0mm
3.F/NO=2.0
4. Element=6G
5.IR SPEC.=650nm
Operation Temperature-20℃ to +80℃
Operation VoltageDC 12V/50mA(±5mA)
OSDSupport
Product Size19 x 19(mm)
ParameterTypical Value
ModleFPV-8mm
Sensor1/2.8" 2M CMOS sensor
Pixel size3.75um*3.75um/2.0um*2.0um
MCU3D Image Processing
SystemCVBS/NTSC 60fps
Low Lux0.01Lux(F1.2,AGC ON)
Color Filter Array/Day-Night modeAll RGB Bayer
Active Pixels1280H x 728V@60fps/FHD
Electric ShutterAuto 1/25-1/10000s
NoiseSupport 2D/3D noise reduction
Consumptionlow power consumption
ExposureAuto
Colour balanceAuto
Lens1.For 1/1.8'' 1/2.8'' 1/3''
2. Focal Length (f)=8.0mm
3.F/NO=2.2
4. Element=8G
5.IR SPEC.=UV+650nm+AR
Operation Temperature-20℃ to +80℃
Operation VoltageDC 12V/50mA(±5mA)
OSDSupport
Product Size19 x 19(mm)
ParameterTypical Value
ModleFPV-16mm
Sensor1/1.8"IMX334;1/2.8"IMX458 CMOS sensor
Pixel size3.75um*3.75um/2.0um*2.0um
MCU3D Image Processing
SystemCVBS/NTSC 60fps
Low Lux0.01Lux(F1.2,AGC ON)
Color Filter Array/Day-Night modeAll RGB Bayer
Active Pixels1280H x 728V@60fps/FHD
Electric ShutterAuto 1/25-1/10000s
NoiseSupport 2D/3D noise reduction
Consumptionlow power consumption
ExposureAuto
Colour balanceAuto
Lens1.For 1/1.8'' 1/3''
2. Focal Length (f)=16.0mm
3.F/NO=2.8
4. Element=8G
5.IR SPEC.=UV+650nm+AR
Operation Temperature-20℃ to +80℃
Operation VoltageDC 12V/50mA(±5mA)
OSDSupport
Product Size19 x 19(mm)
ParameterTypical Value

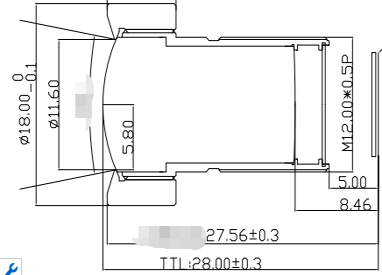

ModleFPV-25mm
Sensor1/1.8"IMX334;1/2.8"IMX415 CMOS sensor
Pixel size1.8um*1.8um/1.45um*1.45um
MCU3D Image Processing
SystemCVBS/NTSC 60fps
Low Lux0.01Lux(F1.2,AGC ON)
Color Filter Array/Day-Night modeAll RGB Bayer
Active Pixels1280H x 728V@60fps/FHD
Electric ShutterAuto 1/25-1/10000s
NoiseSupport 2D/3D noise reduction
Consumptionlow power consumption
ExposureAuto
Colour balanceAuto
Lens1.For 1/1.8'' 1/2.8''
2. Focal Length (f)=25.0mm
3.F/NO=2.2
4. Element=8G
5.IR SPEC.=UV+650nm+AR
Operation Temperature-20℃ to +80℃
Operation VoltageDC 12V/50mA(±5mA)
OSDSupport
Product Size19 x 19(mm)
ParameterTypical Value
ModleFPV-35mm
Sensor1/1.8" IMX334 CMOS sensor
Pixel size1.8um*1.8um
MCU3D Image Processing
SystemCVBS/NTSC 60fps
Low Lux0.01Lux(F1.2,AGC ON)
Color Filter Array/Day-Night modeAll RGB Bayer
Active Pixels1280H x 728V@60fps/FHD
Electric ShutterAuto 1/25-1/10000s
NoiseSupport 2D/3D noise reduction
Consumptionlow power consumption
ExposureAuto
Colour balanceAuto
Lens1.For 1/1.8''
2. Focal Length (f)=35.0mm
3.F/NO=2.2
4. Element=8G
5.IR SPEC.=UV+650nm+AR
Operation Temperature-20℃ to +80℃
Operation VoltageDC 12V/50mA(±5mA)
OSDSupport
Product Size19 x 19(mm)
ParameterTypical Value

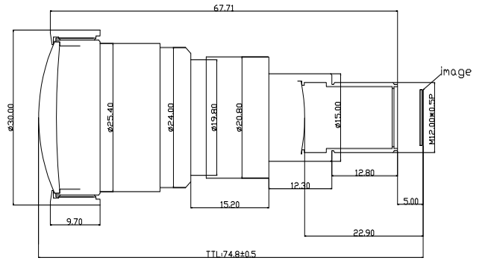

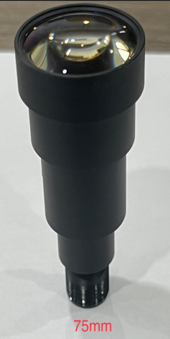

ModleFPV-75mm
Sensor1/1.8" IMX334/OSOA10 CMOS sensor
Pixel size1.8um*1.8um
MCU3D Image Processing
SystemCVBS/NTSC 60fps
Low Lux0.01Lux(F1.2,AGC ON)
Color Filter Array/Day-Night modeAll RGB Bayer
Active Pixels1280H x 728V@60fps/FHD
Electric ShutterAuto 1/25-1/10000s
NoiseSupport 2D/3D noise reduction
Consumptionlow power consumption
ExposureAuto
Colour balanceAuto
Lens1.For 1/1.8''
2. Focal Length (f)=75.0mm
3.F/NO=4.0
4. Element=10G
5.IR SPEC.=UV+650nm+AR
Operation Temperature-20℃ to +80℃
Operation VoltageDC 12V/50mA(±5mA)
OSDSupport
Product Size19 x 19(mm)
